Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.

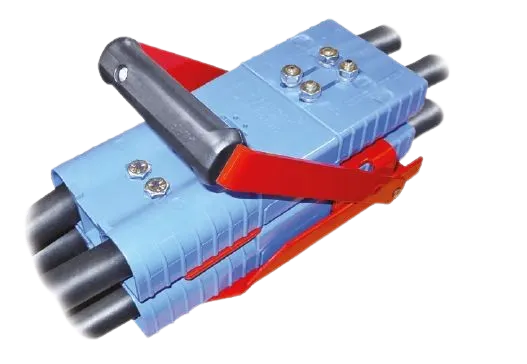

Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Higher Current Rating Provides up to 55A (North America) and 63A (Rest of the World) of current up to 600V •Small Footprint Saf-D-Grid Max is equivalent in size to an IEC C19
Rated for Current Interrupt Minimum of 40A at 305V (UL) •Protected from Accidental Disconnects Active latch system provides secure connections
Touch-Safe Plugs & Receptacles Passes UL and IEC finger probe (plug and receptacle)
Unique Mechanical Keys & Color-Coded Housings Input and output application specific for ease of use and accident prevention •Robust Panel Retention Design Prevents receptacle pull-out
Saf-D-Grid 3-Phase
More Power 2x the power of Saf-D-Grid single-phase; 6.65x the power of C13/C14
5-Position 3-Phase Connector Up to 480VAC on three 20A lines
Compact Form-Factor Same small footprint as C13/C14 Connector
Unique Keying Options for Input or Output Safeguard from accidental cross mating
Positive Impact on System Cable Requirements Smaller cables = lower cost, increased flexibility and air flow
SDG400 PDU Output Key
Unique Mechanical Saf-D-Grid 400 Key Designated specifically for use as an output connector
Proven Electrical Performance Same high-power availability that has made Saf-D-Grid the preferred high-power interconnect solution
Prevents Accidental Loop-back Facilitates more efficient connections
Touch-Safe Connector Passes UL and IEC finger probe (plug and receptacle)
Powerpole® Modular Connector
For installation by a qualified electrician in accordance with national and local electrical codes and the following instructions. The suitability of this type of termination must be evaluated by Underwriter’s Laboratories, Inc. and Canadian Standard Association for the end use application. Assemble contact to the cables according to the equipment manufacturer’s assembly instructions.
Double Stack Manual Assist Brackets
Allows higher amperage using parallel connections
Uses SBE®320 & SBX®350 and DIN E320 & A Series Connectors
Ensures correct alignment and provides mounting plate for truck/charger connection
Reduces operator effort in mating/unmating connectors
Assures connectors are completely mated in operation
UL/CUR recognition
SB50 and SBS50 cable clamps
Robust, Impact Resistant Plastic
Non-Conductive Material
Works with a Wide Range of Wire Sizes (12 through 6 AWG)
Low Cost
Provides Jacket Retention When Flexing Cable/Connector
TP0001
Designed with up to 8 die closures which can be changed by selector knob
Allows the tool to be quickly configured to the appropriate die
Highly configurable in the shop
Can be used as a hand tool or combined with the multiple available accessories for bench mounting
Optional bench mount can be adjusted to virtually any angle Provides ease of use and flexibility in configuration
Gold plated for greater connectivity 3 Pin Lengths Available
Offers sequencing capabilities Touch Safe per UL 1977 Sec. 10.2
Touch safe on both pin & socket sides Rugged & Environmentally Sealed Shells
F1 weatherability rating per UL 746C
V0 flammability rating per UL 94
IP68, exceeds industry standards
6 Pole Mini SPEC Pak®
The 6 Pole Mini SPEC Pak® waterproof connectors come in configurations of wire to wire or wire to panel mount offerings with up to a maximum of 50A of power and the durability of up to 10,000 mating cycles. The bayonet latch with locking identifications help safeguard against accidental disconnects that may be caused by vibrations, while the compression nut offers additional strain relief protection on wire cables. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications including E-Mobility, Lawn and Garden, Power Equipment, Commercial and Industrial applications. Rated to IP68 with protective features to ensure that the connector will be free of water and dust in the mated conditions. Covers offer general finger proof IP20 protection in unmated conditions of connectors.
75 amp Power Drawer® Connector
Industry Standard Contacts Allows for cross mating with competitive product
Wide Selection of Contact Termination Provides the designer a wide variety of packaging options
First-mate and Last-mate Capability Grounds and powers the system before mating of signal circuits
Integral Guide Pins Corrects misalignment during blind mating
Optional Floating Mount Reduces fatiguing stress on connectors during Blindmating
A SERIES BATTERY CONNECTOR
Safety Agency Approvals EN1175:2020 Voltage Keying A series connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Chemical Resistant SB® | SBS® | Powerpole®
The Chemical Resistant (CR) line of connectors were developed for customers whose applications require robust connector solutions that offer durability against environmental factors that commonly degrade standard products. The housing material offers improved resistance to hydrocarbons and solvents, as well as, an extended temperature range. The CR connectors are ideal for a variety of industries that include Automotive, Industrial, and Personal Mobility. In addition, these new housings offer all the benefits of the industry standard Powerpole® SB® and SBS® products including color and mechanical coding, hot plug capability, and genderless design. These products are fully intermateable and interchangeable with the standard lines of connectors and accept the same range of contacts.
Euro Battery Connectors (EBC)
Safety Agency Approvals EN1175:2020 Meets VDE 0623-589, completely compatible with DIN 43589-1Offers interface compatibility for housings, contacts and air tubes. Voltage Keying EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications. Sturdy Advanced Polymer Housings Provide superior resistance to impact, acid and temperature extremes. Silver Plated Copper Contacts Provide excellent conductivity and superior mating cycle performance.
Multi Axial Rotational Connector
The Multi Axial Rotational Connector “MARC” features 8 Powerpole® contacts integrated into a blindmate housing. The connector is designed to blindmate from 2 rotating axis or straight on. The two row, horizontally oriented connector uses our industry leading flat wiping contacts. The MARC is rated to 29 amps per circuit and can be configured with 8 standard length contacts or 6 standard length and 2 pre mate, multi-purpose contacts, which can function as ground, power or signal. The rugged connector is UL listed and rated up to 10,000 mating cycles. The dielectric is a chemically resistant PBT plastic. APP connectors are manufactured using the finest materials and world-class manufacturing processes. They embody the highest quality in the industry and meet all applicable industry standards.
Power Clip® Dual Pole Connector Series
High 300A Current Rating Small size provides dense power packaging
Mates with .125 inches or 3mm flat Bus Bar Blade Simplifies construction and lowers cost
UL and CUR Recognized Product safety and electrical performance has been verified to the highest standards
Powerpole® Connectors PP120
Large Wire Range Accommodates up to 1/0 (50 mm²) Wire Reducing bushings allow as small as 8 AWG (10 mm²) wire to be used
Low Resistance Silver Plated Copper Contacts Allows currents up to 240 amps
UL Rated for Hot Plugging up to 60 Amps Great for battery or other applications where the ability to interrupt circuits is required
Powerpole® Connectors PP15/45
High Power Density Up to 55 amps in a compact footprint
Wire-to-Wire & Wire-to-Board Configurations Wire & PCB contacts can be used in the same housings
Finger Proof Housings Available Protects against accidental contact with live circuits
Powerpole® Connectors PP180
Low Resistance Silver Plated Copper Contacts Allows currents up to 350 amps
UL Rated for Hot Plugging up to 75 Amps Great for battery or other applications where the ability to interrupt circuits is required
Busbar Contacts Work with Standard Housings Provides a hot swappable quick disconnect system for busbar power distribution
Powerpole® Connectors PP75
Large Wire Range Accommodates up to 6 AWG (10 mm²) Wire Reducing bushings allow as small as 16 AWG (1.5 mm²) wire to be used Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs Mini-Powerclaw PCB Contacts Minimize PCB Footprint Removes the PP75 housing from the board side
PP10 Pin & Socket Powerpole® Connector
Make-first/Break-last connection Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled with standard Powerpole PP15, Powerpole PP30 and Powerpole PP45 connectors to make pre-grounded multipole configurations
PP30 Pin & Socket Powerpole® Connector
Make-first/Break-last connection
Provides safety and system integrity
Green housing Visual indication of ground terminal
Molded-in dovetails
Can be assembled into “keyed” configurations to preclude misconnections
Saf-D-Gr Low Clearance Ultrashort id®
Low Clearance Ultrashort The Saf-D-Grid Low Clearance Ultrashort Receptacle frees up valuable space allowing additional room needed to support the increase in cable size requirements. Space is a premium in network cabinets. Reducing even the smallest amount needed to accommodate equipment can have a huge impact on efficiency and increasing power demands. Features
Saf-D-Gri Datacom Solution d®
Saf-D-Grid Connectors respond to the increasing need for a power interconnect solution that accommodates a 380VDC configuration that has been adopted in datacenter architecture. Saf-D-Grid is also an ideal solution for servicing 277VAC electrical circuits which enables use of commercial architecture already in place (LED lighting) to be used for datacenter power. Additionally, the Saf-D-Grid temperature rating of 90°C to 105°C provides application benefits in hot aisle environments.
Saf-D-Grid AC/HVDC Global Power Connection Solutions
Carrying DC or AC Current up to 32A and 600V
Footprint of an IEC 620 C13/14
Meets International Safty Requierments for Hazardous,
Low Voltage Applications
SB® & Powerpole® Connectors
Designers are increasingly in need of greater current carrying capability without increasing size. The Extended Range Contact series meet this need by adding design fl exibility and value to the SB120 and Powerpole 120 & 180 housings. Now these same connector housings are able to accommodate larger wire sizes and have increased amperage capability by up to 92%.
SB® 120 Connectors
Extended Range Contacts Expand Wire Size up to 1 AWG (42.4 mm²)
Allows UL rated currents up to 240 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Panel Mounting Grooves
With use of mounting clamps, can be easily mounted through panels
SB® 175 Connectors
Wires sizes from 10 to 1/0 AWG (5.2 to 53.4 mm²) fit in the second to largest connector in the SB® series.
The 3 pole SB® 175 adds an additional position for power or grounding. All Multipole wire connector housings are genderless and mate to themselves minimizing inventory and assembly complexity.
Silver Plated Wire Contacts up to 1/0 (53.4 mm²) Allows UL rated currents up to 280 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
UL Rated for Hot Plugging up to 100 Amps Great for battery or other applications where the ability to interrupt circuits is required
SB® 350 Connectors
The SB® 350 is the largest connector in the series with power capabilities up to 500 amps with a 350 mcm wire.
Wires ranging from 1/0 to 350 mcm (53.5 to 185 mm²) fit into the one piece housing available in standard PC or a chemical resistant PBT/PC blend.
Silver plated wire or busbar contacts minimize electrical resistance while offering supreme durability and reliability.
Up to 350 mcm (185 mm²) Wires Allows UL rated currents up to 500 amps
Chemical Resistant Housing Option Extends temperature range down to -40°C, while offering enhanced UV and chemical resistance
Same Housings Used for Wire and Busbar Contacts Enables color-coded mechanically keyed wire to busbar connections
SB® 50 Connectors
Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
Wire, PCB, and Busbar Contacts Allows one connection system to meet multiple needs
SB® Environmental Boots
The soft shell boots provide water, dirt, chemical and UV protection for SB® connectors. The durable boots shield the connectors from water and dirt to IP64 when mated or unmated when the integral cover is used. SB® Environmental Boots are ideal for a wide range of applications including: generators, industrial trucks, bus and coach, road construction, road maintenance, off road, farm and agriculture equipment.
SB® Smart Connector
Selective Keyed Housings Unique keying feature only allows intended connector halves to mate
Power and Auxiliary Contacts Provides power up to 230 amps plus signal & low power in a single connector
16 Last-Mate First-Break Auxiliary Power / Signal Poles Enables the power connector to also transmit signals for intelligent power switching, battery monitoring, CAN communication, loop circuitry, and other signal or power circuits up to 15 amps
Sequencing of Auxiliary Contacts Male auxiliary contacts available in 3 lengths
Wire and Busbar Connections Satisfies multiple interconnect needs with one connection solution • Low Resistance Connection - Silver plated power contacts are strongly forced together by stainless steel springs - Gold plated auxiliary contacts ensure signal quality or reliable power
Hot Plug Capable Contacts - Power contacts are hot plug capable up to 60A at 120VDC - Auxiliary contacts are hot plug capable up to 5A at 120VDC
SBE® 160 / SBX® 175 Connectors
SBX® and SBE® connectors can integrate up to 8 auxiliary power / signal contacts along with the two primary power circuits. SBE® connectors feature an IEC 60950 touch safe housing molded from a chemical resistant PBT / PC blend resin. SBX® are molded from a rugged PC resin and are rated IP20 per IEC 60529.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950 & IEC 60529
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Color-coded Mechanical Voltage Keys Like all Multipole connectors, the SBE® and SBX® offer an easy way to identify circuits and protect against cross mating
SBE® 320 / SBX® 350 Connectors
SBE® and SBX® connectors can integrate up to 8 auxiliary power/ signal contacts along with the two primary power circuits. Sequencing within auxiliary positions is possible using the 4 pin lengths available in the 1x4 auxiliary connector. SBE® and SBX® offer touch safe housings.
Meets EN1175:2020
Silver Plated Wire Contacts up to 350 mcm (185 mm²) Allows low resistance UL rated currents up to 550 amps per pole
Up to 8 Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole. Auxiliaries are all Last-mate/ First-break relative to power contacts.
SBE® 80 / SBO® 60 Connectors
SBE® and SBO® connectors build on the capability of the two pole SB® connectors by offering up to 8 auxiliary power / signal contacts along with an IEC 60950 touch safe housing. The center of the main connector features a connector holder for either: two PP15/45, two PPMX, or APP’s innovative 1x4 auxiliary connector.
Meets EN1175:2020
Touch Safe Interface Minimizes potential contact with live circuits per IEC 60950
Up to 8 Last Mate / First Break Auxiliaries Enables intelligent power switching, CAN and interlock loop circuitry, as well as power up to 20 amps per pole
Silver Plated Wire Contacts up to 4 (25 mm²) Allows UL rated currents up to 80 amps per pole
SBS® Connectors
Wire-to-wire and wire-to-board configurations both provide power contacts rated up to 110 amps. The SBS® 75X offers up to 4 mate-last break-first auxiliary power / signal contacts rated up to 20 amps. The SBS® 75G features a third first-mate last-break ground or power contact. All contact positions are rated for circuit interruption (hot plugging).
Touch Safe Interface Can safely be used in through panel applications Minimizes potential contact with live circuits per IEC 60950
Wire-to-Wire and Wire-to-Board Configurations Allows one connector to meet multiple needs
Ground or Auxiliary Positions Integrated into the One Piece Housing Meets all connection requirements in one compact connector housing
SBS® Mini Connectors
SBS® Mini Connector series is our smallest DC power connector in the SBS® group. The SBS® Mini securely holds two crimp and poke contacts with sacrificial tips to enable hot swap capabilities on DC circuits. The low resistance contacts accept 20 to 10 AWG (0.52 to 5.3 mm²) wires allowing up to 52 amps of UL rated performance per position.
Touch Safe Housing Minimizes potential contact with live circuits
Color-Coded Mechanical Key Prevents accidental mating of connectors operating at different voltage levels
Compact & Ergonomic Housing Is “user friendly” during connection and disconnection of the system
UL Hot Plug Rated to 45 Amps @ 72 Volts Good for applications where the ability to interrupt Circuits is required
SBS®X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
SBS®X-75ASealed Connector Series
The SBS®X-75A sealed waterproof connectors come in a multiple of configuration offerings with up to a maximum of 140A of power and the durability of up to 5,000 mating cycles. Positive metal latches help safeguard against accidental disconnects that may be caused by vibration, while the built-in cable clamp allows for strain relief on wires. The compact sleek high-power design of these environmentally rugged connectors makes them ideal for outdoor applications. The IP68 weatherproof rating ensures that the connector will be free of water for full protection up to 30 minutes at 6 feet in the mated conditions, or with the use of covers in unmated condition.
SPEC Pak® 5 Pole Mid Power
IP68
Compact Sealed Connector
3 Phase AC Power Distribution
Motors & Controls
Industrial Equipment
60 Apms
SPEC Pak® Mid Power
Chemical & UV Resistant Ruggedized Shells
Wire to Wire Configurations
Wire to Panel Configurations
Auxiliary Contacts for Signal and/or Sequencing (up to 8)
Power Contacts (up to 4)
Sealing Gland to Ensures (IP68) Environmental Seal
Color Coded Powerpole® Housings to Match Wire Colors
Stainless Steel Latches to Prevent Accidental Unmating
IP68 Panel Mount Receptacle Gasket 8 - Sealing O-Ring Ensures (IP68) Environmental Seal
SPEC Pak® Mini 3 position connector
Environmentally Sealed - IP68 rated - Passes UL50 Sec. 36
High Power In Compact Housing Housings provide up to three contacts rated up to 22 amps at 600 volts
Touch Safe Housings Meets UL1977 Sec.10.2
Integral Latch Prevents accidental un-mating
Male Contacts Available In 3 Lengths Allows sequencing of mating contacts
Ruggedized Shells Manufactured of durable polycarbonate that meets UL94 V-0 flammability requirements
SPEC Pak® Solar 5 Poosition Mid Power
Solar Power
Wind Power
DC Lighting
Inverters
Battery Backup
Ip68 Rated
LED Lighting
Solar Panels
Combiner Boxes
Hydro-Electricity
Micro Inverters
SBS® X-75A Sealed Connector
Power & Signals or Ground
Rated for IP68 Ingress Protection
Positive Latching to Secure Connection for Vibration Applications
Operating Temperatures -20°C to 105°C
5,000 Mating Cycles
1309 Series Crimp Tool
Operating Procedure 1. Strip cable according to manufacturer’s specifications. 2. Select the appropriate cavity for the contact being crimped per below chart. 3. Place contact on lower die with the contact wings or crimp barrel crease facing towards the upper die (See Figure 1). Press the contact fully back into the locator until the wire stops or the crimp barrel end is slightly inside the locator (See Figure 2). 4. Close tool carefully until jaws grip the contact. 5. Insert the properly stripped wire into the contact. 6. Holding the wire in place, close the tool past the ratchet release position and allow the jaws to open. A ratchet release lever is provided to allow removal of an incorrectly placed or oversized contact (See Figure 3). 7. Remove and inspect the crimp. There should not be any noticeable distortion in the angle of the contact blade (See Figure 4). 8. Test by holding contact and pulling firmly on cable.
Crimp Tool TM0001
Anderson Power Products TM0001 Hand Crimp Tool is qualified to MIL-DTL-22520/1, has virtually limitless application within the specified wire range of #12 to # 24 AWG (4.0 to 0.25mm). Turret heads are available to crimp PowerMod®, Power Drawer®, and SPEC Pak® Series Contacts. The 8 impression crimp, which is standard in the TM0001, assures absolute maximum tensile strength with every crimp. The precision ratchet controls cycling of the tool in both directions of handle movement. This assures the same accurate crimp every time. It’s like having a quality control inspector at every work station.
PM1000G1
The PM1000G1has been developed for crimping of both male and female turned contacts. The tool is only to be used for the application described below. The manufacturer is not liable for damages caused by improper use or unauthorized technical modifications of the tool. The tool consists of a movable handle with precision ratchet mechanism, a fixed handle with a metric scale, an adjustment system by micro setting of 0.01 mm tolerance, four indenter jaws and a 12 position locator, fully rotatable, for accurate positioning of contacts. A reference table, marked onto the crimp tool’s surface, informs on the locator position and crimp depth to be selected to match a particular contact. The tool can be adjusted to any crimp depths that might be requested by the contact manufacturer.
PM1002G1
MATERIAL: ANODIZED BLACK ALUMINIUM HANDLE, STAINLESS STEEL SHAFT
FOR USE ON POWERMOD, SBS75X SERIES, AND SPEC PAK CONNECTORS
FOR USE INSTRUCTIONS, SEE POWERMOD, SBS75X, AND SPEC PAK ASSEMBLY INSTRUCTIONS
Strømstik er de usynlige helte i moderne strøm- og signaltransmission. De bruges overalt, hvor elektriske strømme skal overføres sikkert, stabilt og med lave tab - uanset om det er i maskiner, opladere, telekommunikationssystemer eller højstrømsapplikationer. Som en erfaren distributør udvikler Anderson Power højtydende løsninger, der opfylder industriens stigende krav. Sammen med vores partner APC International tilbyder vi en bred portefølje af robuste strømstik, der sætter standarder for sikkerhed, ledningsevne og holdbarhed.
Takket være deres modulære design, farvekodede nøgler og varianter til høje temperaturer kan vores stik fleksibelt integreres i en lang række systemer - fra batteriovervågning til komplekse strømforsyningsenheder. Vores kunder nyder godt af pålidelig tilslutningsteknologi, der fungerer pålideligt selv under de hårdeste forhold.
Strømstik til høje strømme i industrien
Strømstik til strømforsyningsenheder og kontrolskabe
Strømstik i elektronik består generelt af et isolerende hus og ledende kontakter, som regel lavet af forsølvet kobber. De sikrer pålidelig strømoverførsel med lav kontaktvarme og lang levetid. Serier som Powerpole eller PowerMod fra Anderson Power tilbyder forskellige konfigurationer - fra wire-to-wire til PCB-montering.
Mekanisk kodning forhindrer fejltilpasning, mens muligheder som hot-plug-funktion eller make-first/break-load-teknologi giver yderligere beskyttelse. Husene er ofte farvekodede og temperaturbestandige op til 180 °C. Modeller med hjælpekontakter gør det også muligt at integrere kontrol- og overvågningsfunktioner i et kompakt system.
Strømstik består normalt af et isolerende hus og elektrisk ledende kontakter, som fås i forskellige versioner som f.eks. crimp-, lodde- eller PCB-forbindelser.
I elektronikindustrien bruges de til at overføre strøm sikkert mellem komponenter, moduler eller enheder. Serier som Powerpole eller PowerMod fra Anderson Power tilbyder mekanisk polariserede huse, der sikrer fejlfri parring.
Kontrol- eller diagnosesignaler kan også integreres ved hjælp af ekstra kontakter. Materialer af høj kvalitet som f.eks. forsølvet kobber sikrer lav kontaktmodstand og lang levetid - selv ved hyppig sammenkobling og i barske industrielle miljøer.
